A leading forklift solution that has been for over 15 years, produced by a high-tech enterprise specializing in the production, research and development of safety electronic products such as forklif safety management systems, forklift collision avoidance, vehicle speed limit warn.ings, factory vehicle driving safety, and security sound and light warnings.
Highest standards of quality and integrity is the principle we hold in pursuit of our primary goal of Customer success.

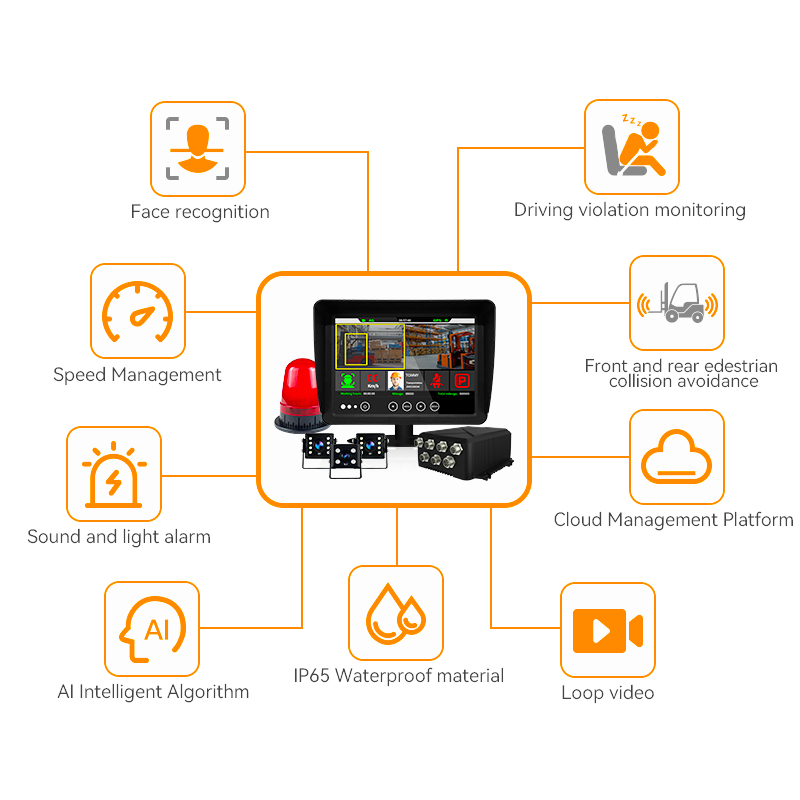

The AI intelligent imaging system is an intelligent video surveillance device specially developed and designed for special engineering equipment such as forklifts.

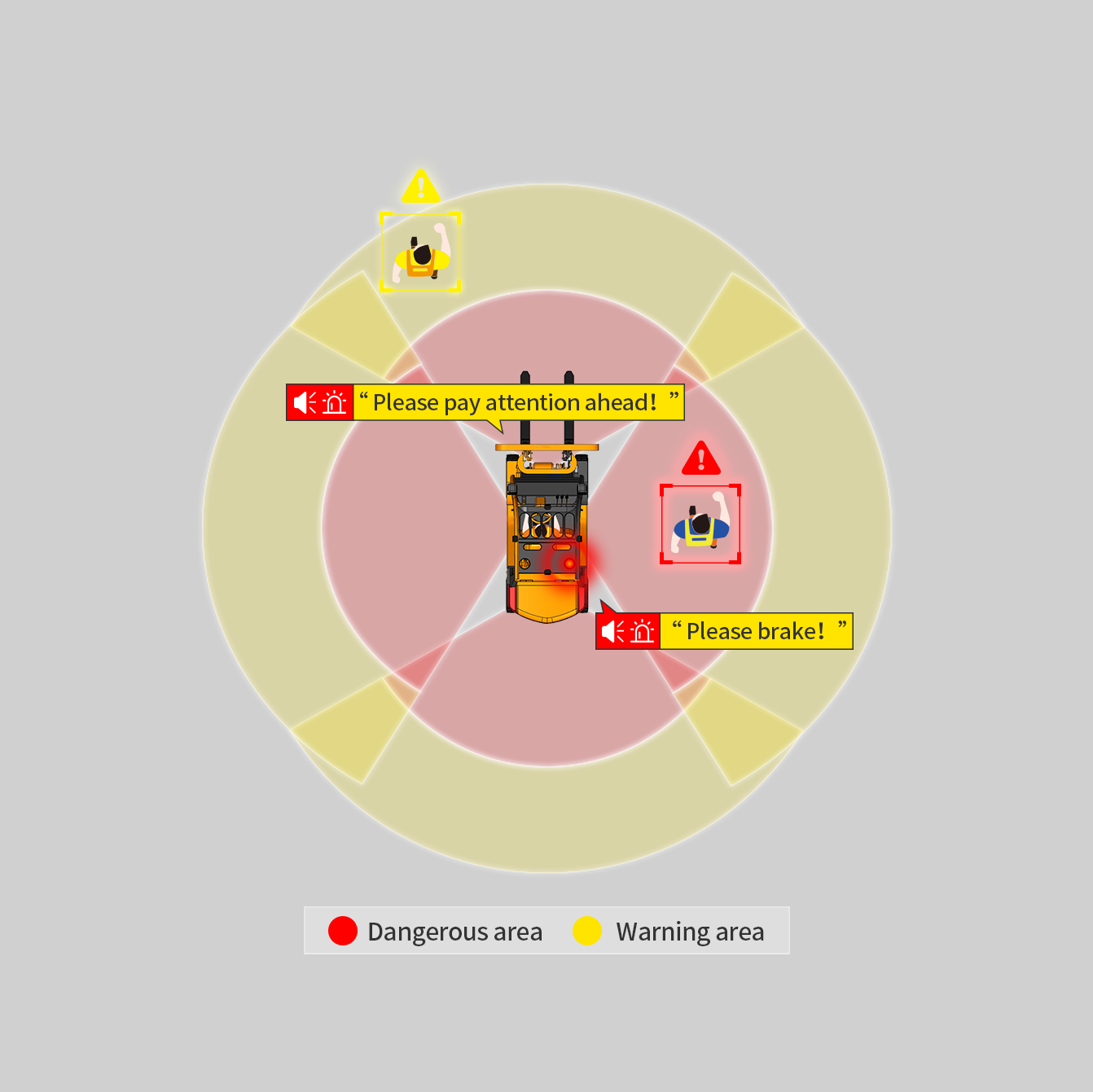

It uses AI artificial intelligence technology to detect dangerous conditions in the working area in real time and provide warnings. Once someone enters the dangerous area, the driver can receive dynamic anti-collision warnings, which helps to improve the safety of engineering vehicle operations.

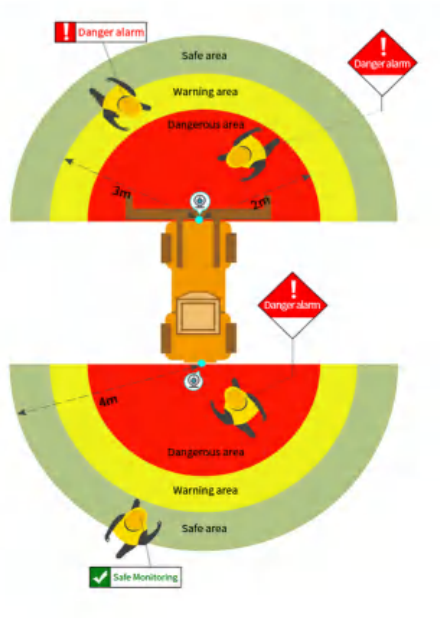

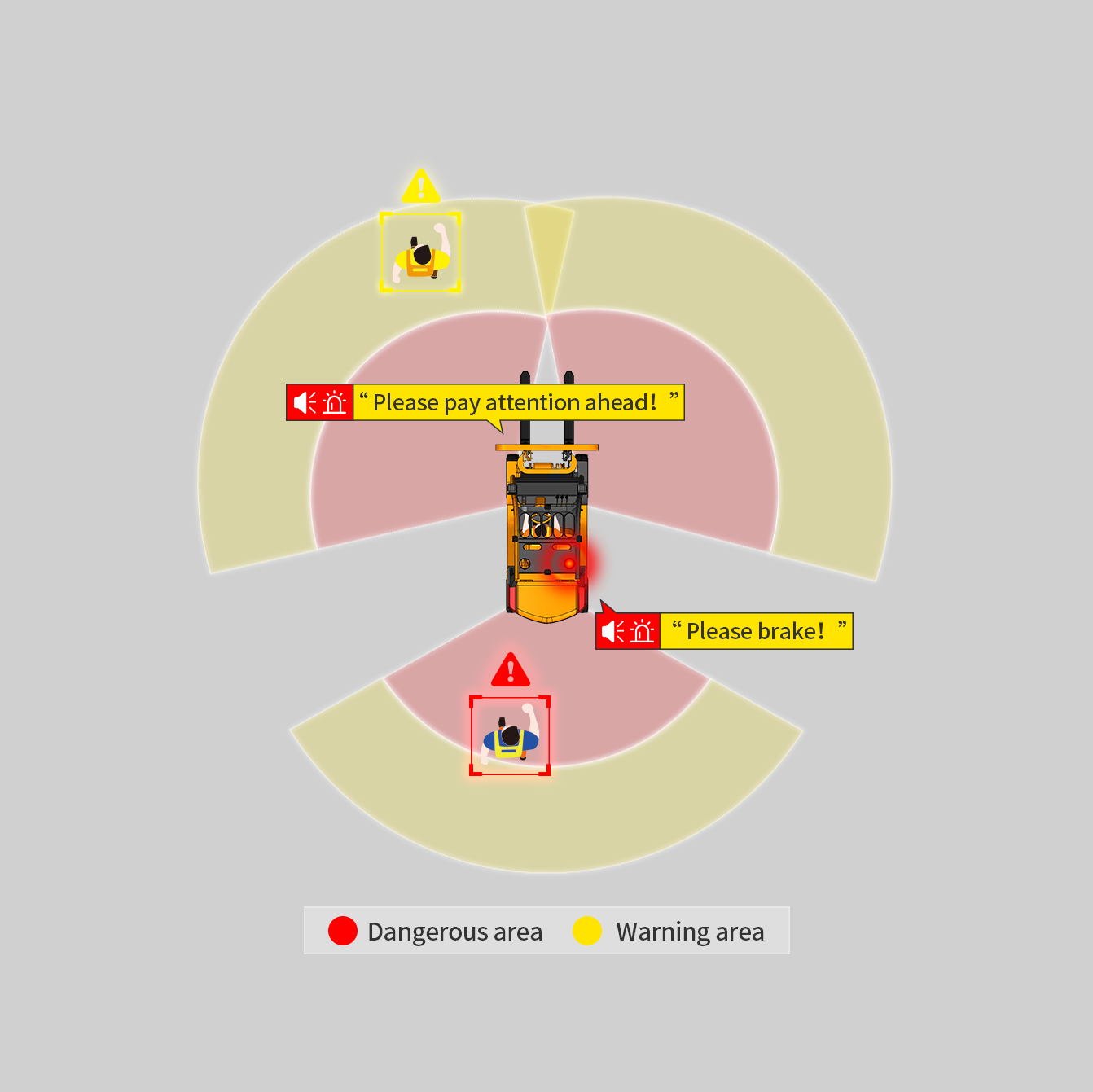

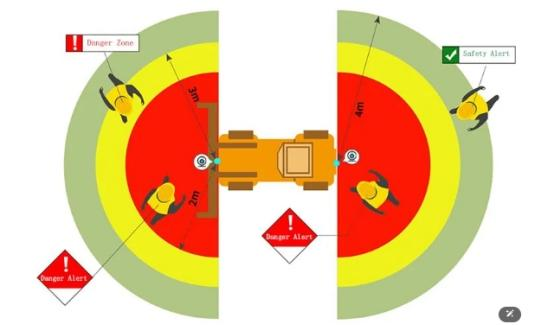

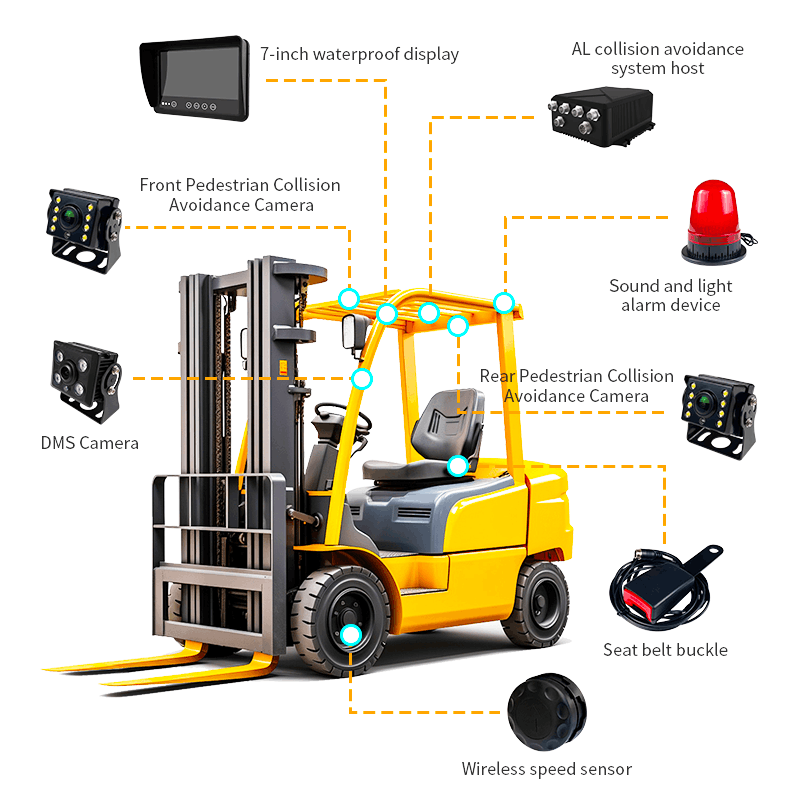

As shown in the diagram on the left: ADAS cameras are installed separately on the front and rear of the forklift roof, combined with deep learning algorithms to complete machine vision recognition.
The cameras are installed on the front and rear of the vehicle's overhead guard for 190° video monitoring, while solving the blind spots in two dimensions. Active pedestrian monitoring images and sound warnings can be added according to different distances from the vehicle. When pedestrians enter the dangerous area, the forklift shutdown and parking controller can be (optional) to control the forklift to shut down and stop. This product is an assisted driving system, and the driver should always abide by safe driving rules and make correct judgments and operations.
The AI Solution has been tested to give around 98% accuracy of 10m including in lower light and challenging conditions for pedestrian identification, with a less accuracy from 10m to 20m.
| QTY | Number | Product Picture | Product Name | Function | Configuration |
|---|---|---|---|---|---|

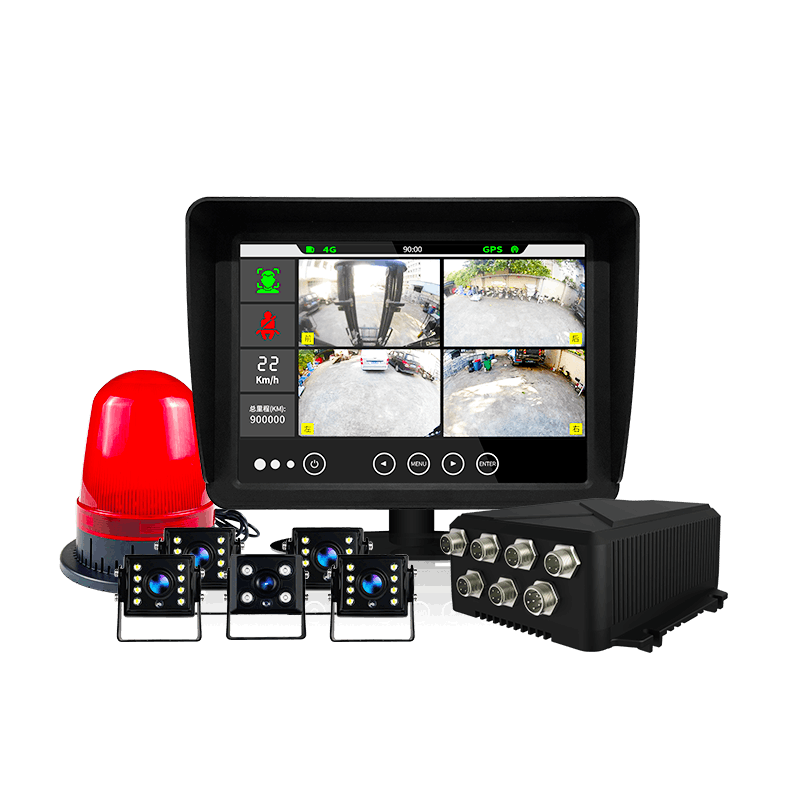

| 30 | N2024G-4 |
|
AI forklift collision avoidance system (stand-alone version) |
Detection angle: 360° ultra-wide angle Maximum detection distance: 7 meters (distance adjustable) Sensing object: people Functions: face recognition authorization, DMS driver behavior analysis, forward collision avoidance, left collision avoidance, right collision avoidance, reverse collision avoidance, secondary collision avoidance warning, deceleration and parking function. |

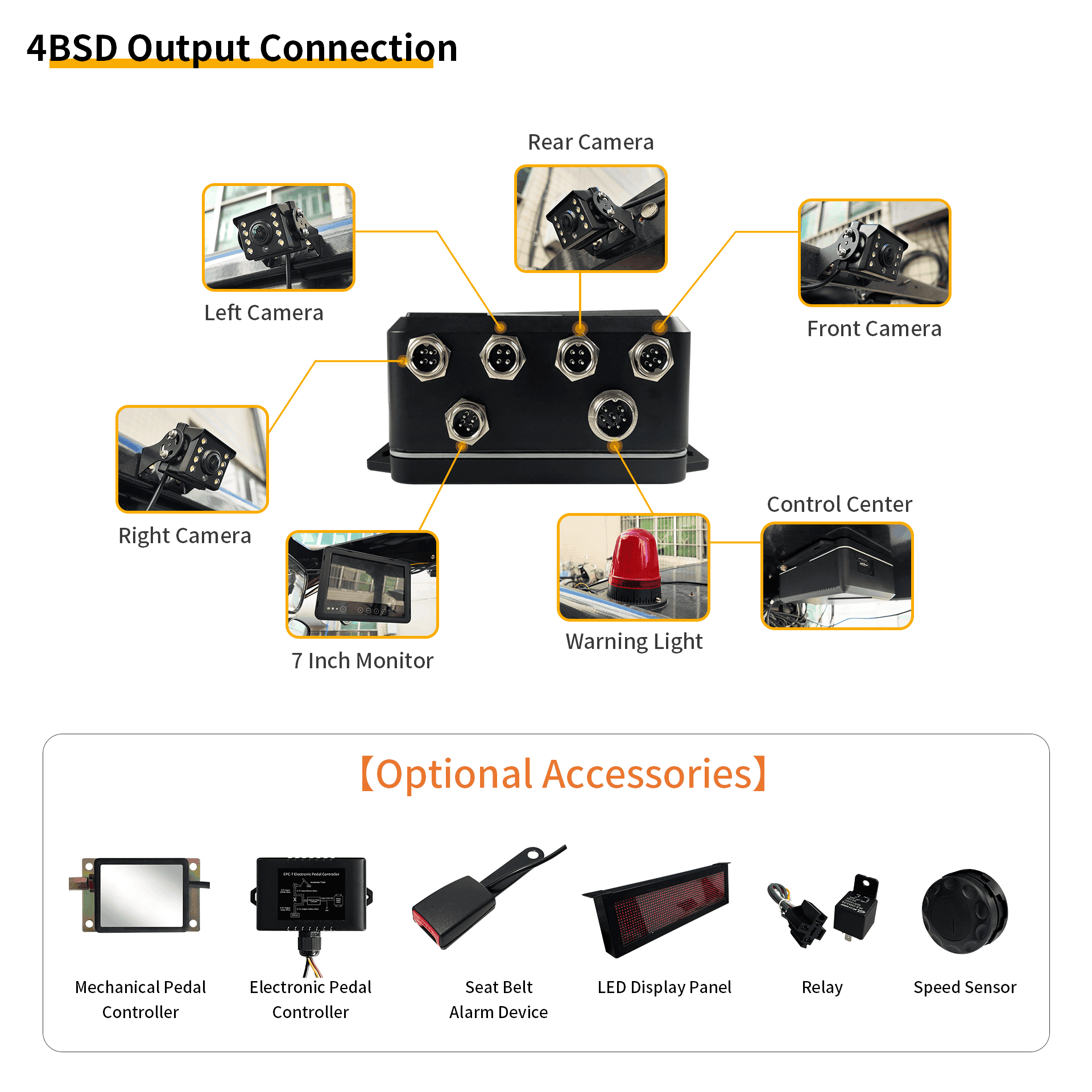

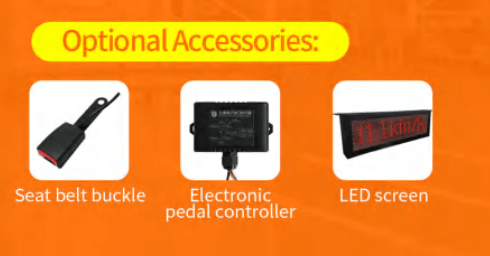

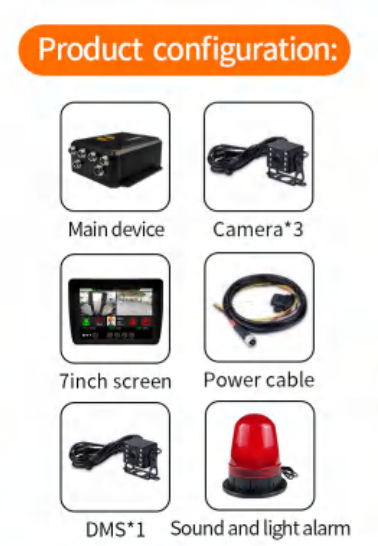

Standard configuration: display screen, AI anti-collision host, 2406B DMS camera, front, rear, left, and right BSD cameras, sound and light alarm, main wire, relay Optional configuration: electronic throttle, mechanical throttle, seat belt buckle, LED display screen, wireless sensor |
The camera base fits snugly against the overhead guardrail, that the camera is level and can be moved downward from horizontal. The camera can be mounted upward or downward. the camera bracket is secured with screws.
The alarm is secured with self-tapping screws.
We recommend mounting it under the seat or hanging it on the overhead guardrail.

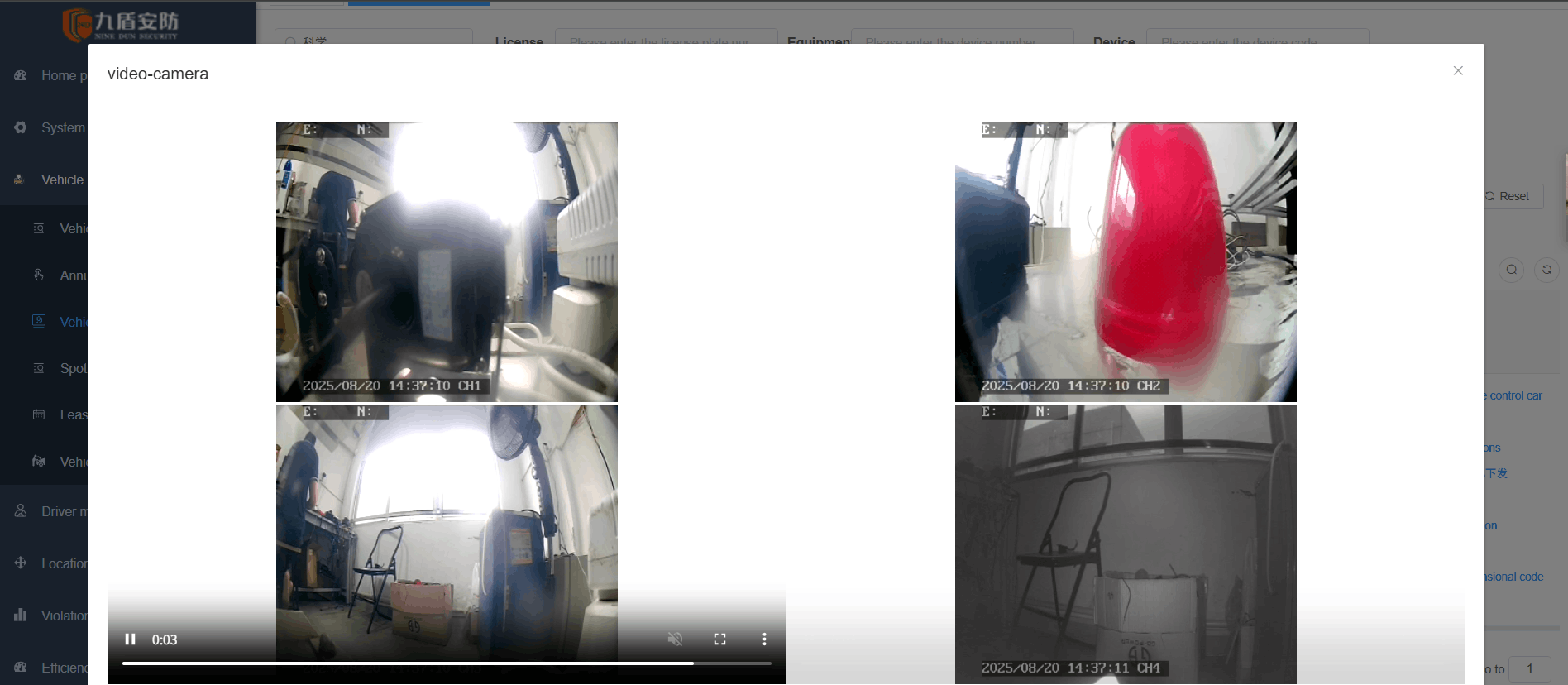

A centralized platform for software services, vehicle management, driver management and operational data analysis.
Computer Web and mini-program system use and maintenance.
Organizational structure, user creation, role permissions, data entry, etc

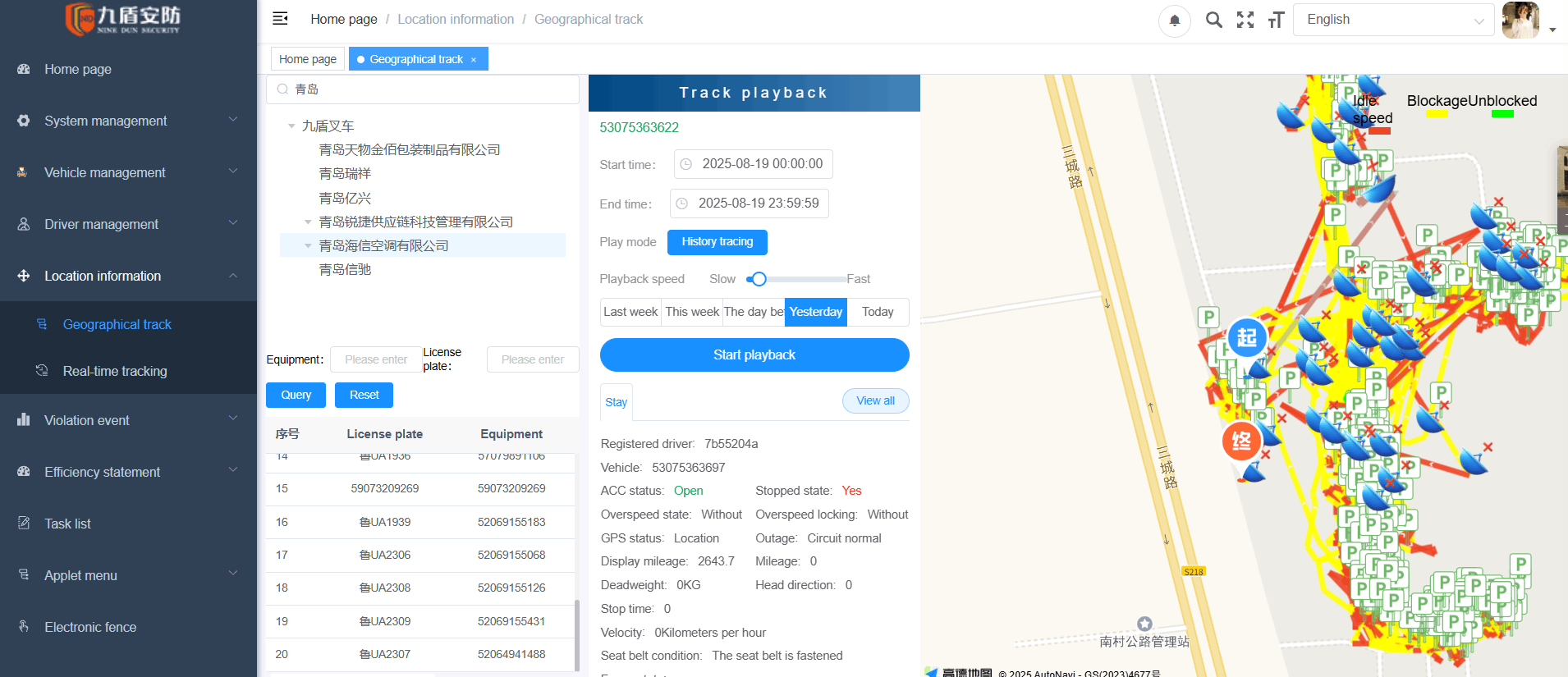

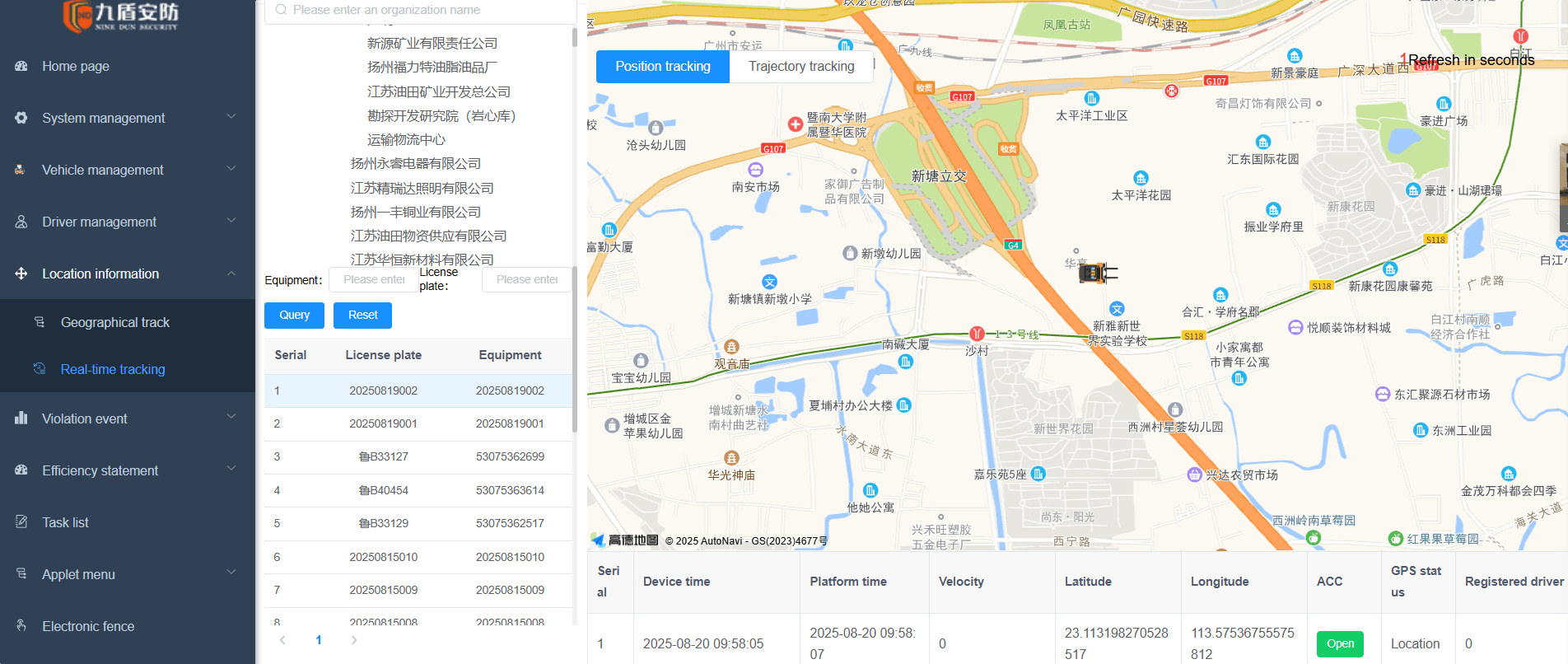

Accurately locate the vehicle position through GPS and Beidou, set up electronic fences, and play back tracks.
Vehicle information entry, driver authorization, maintenance management, and reminders for annual inspections.
Driver information entry, driving behavior management, and reminders for annual inspections of expired certificates.

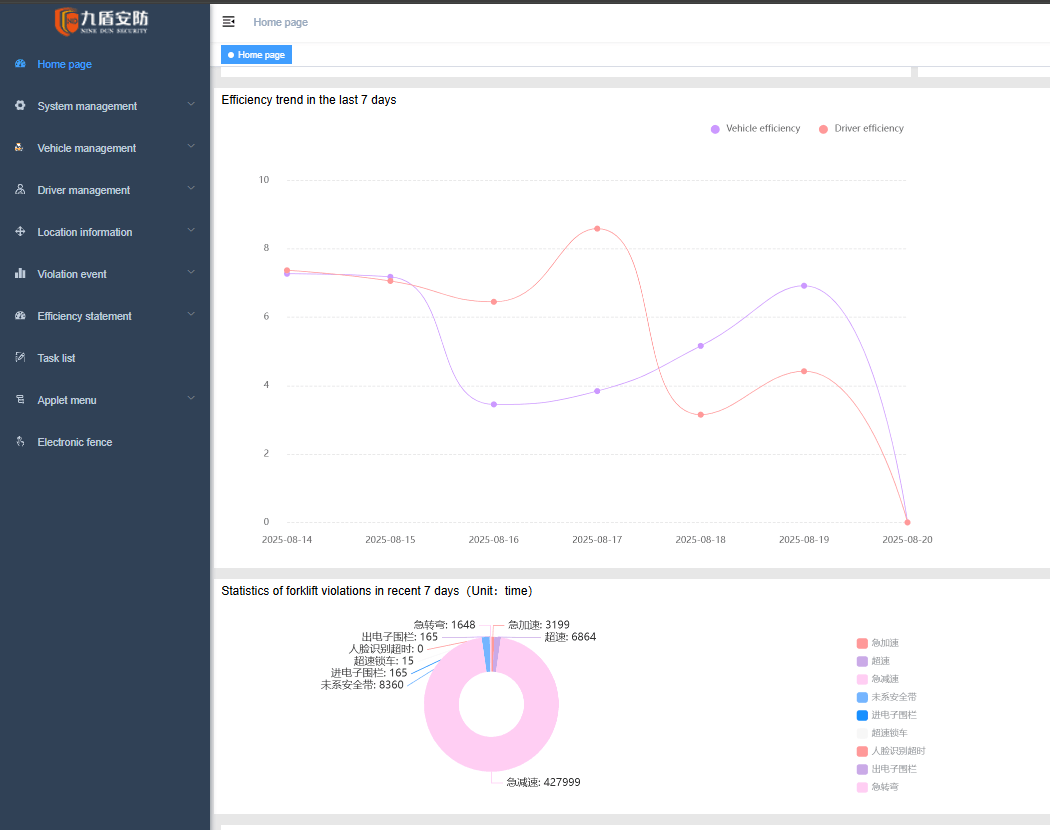

Statistical analysis of human and vehicle operating efficiency, viewing and downloading of multi-dimensional data statistical reports
Statistical analysis of human and vehicle operating efficiency, viewing and downloading of multi-dimensional data statistical reports.
People-vehicle-enterprise management, annual license inspection management

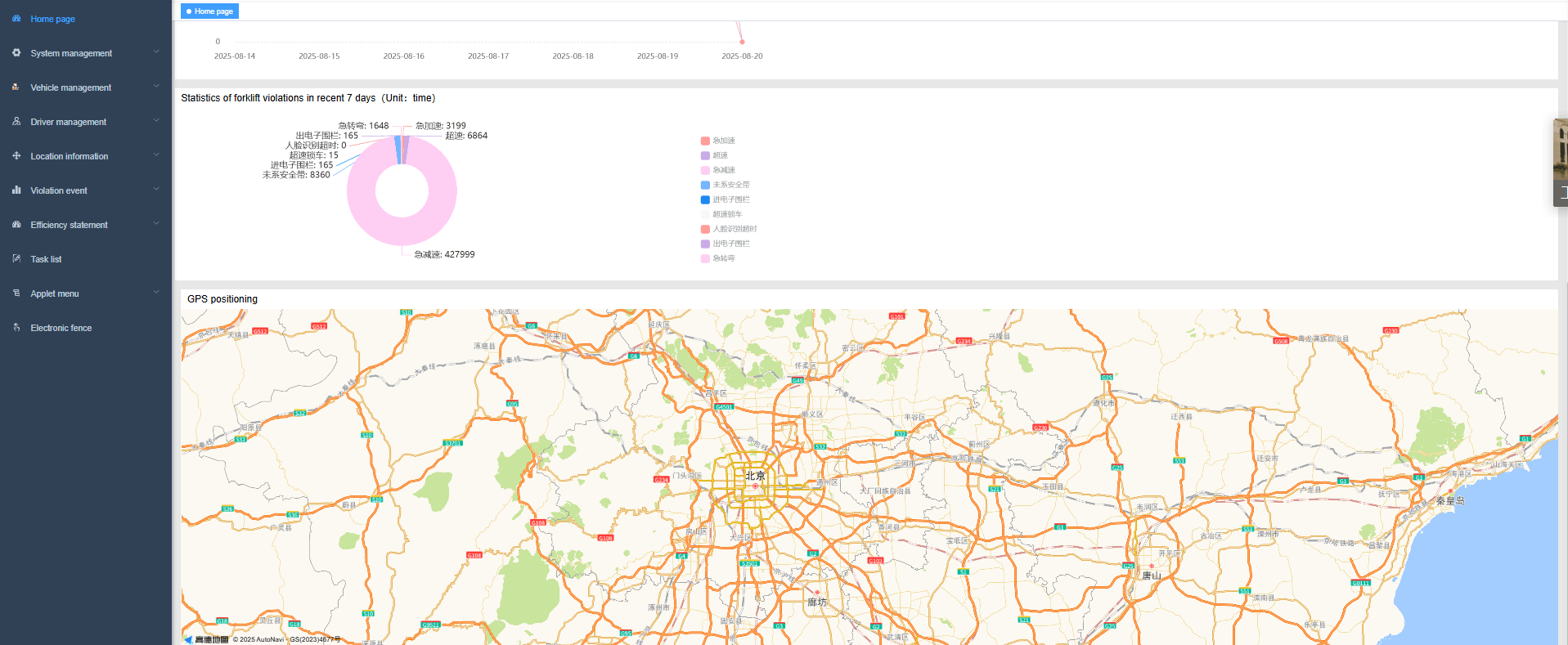

Analysis of illegal behavior, safety education and training
Vehicle flow detection, clear division of responsibilities
risk warning reminder, elimination of safety hazards
meeting regulatory requirements, creating corporate value

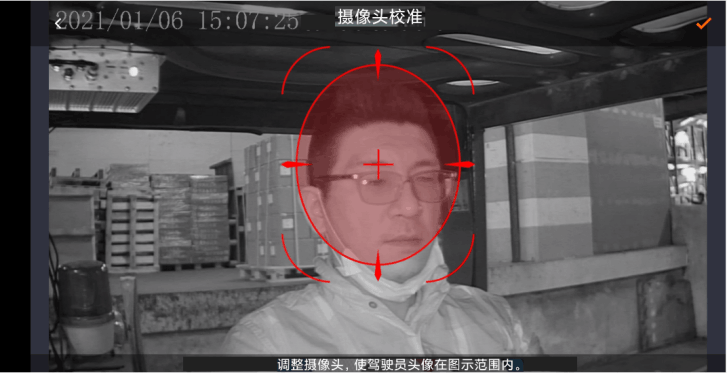

A camera equipped with infrared fill light can simultaneously detect operator fatigue and analyze the driver's status under different lighting conditions.
Driver status can be monitored for signs of fatigue and dozing, helping provide an early warning when the operator becomes tired.

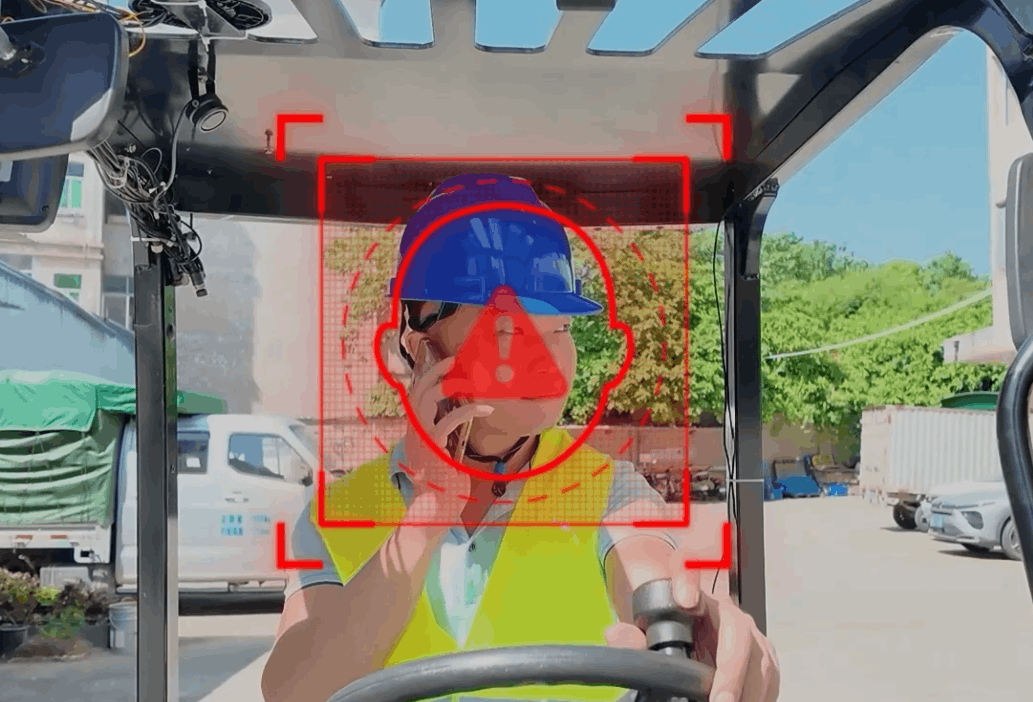

The system monitors driver activity and can identify mobile phone calling behaviour while the vehicle is being operated.

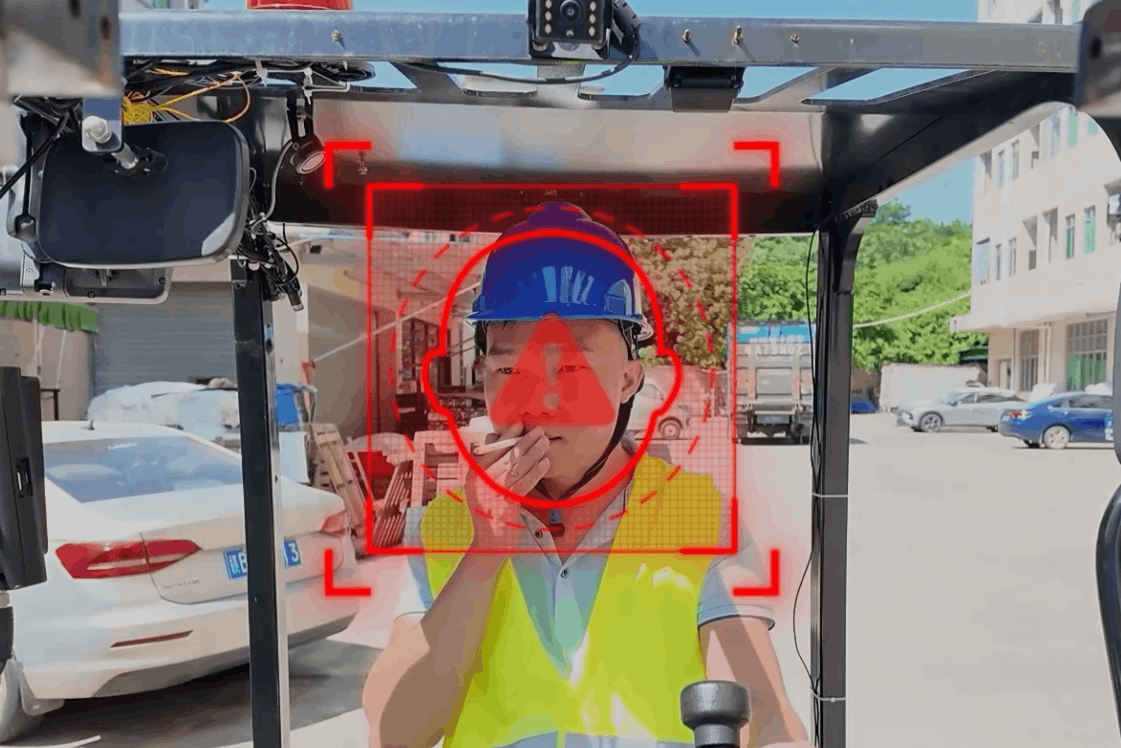

The driver monitoring system can identify smoking behaviour and provide an audible warning to the operator.

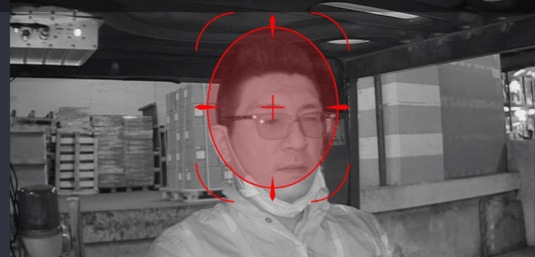

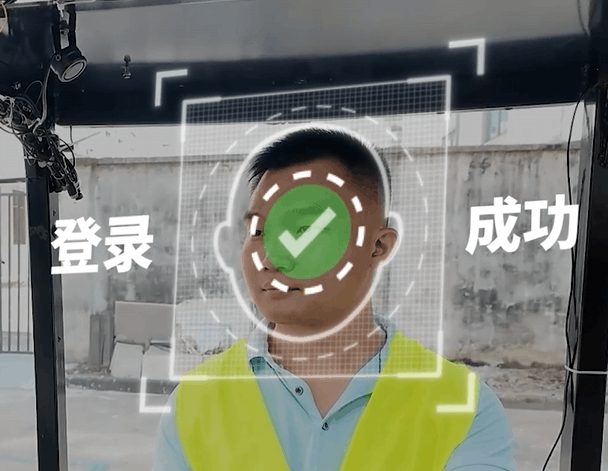

Facial recognition can be used to authenticate drivers and support controlled vehicle access for authorized personnel.

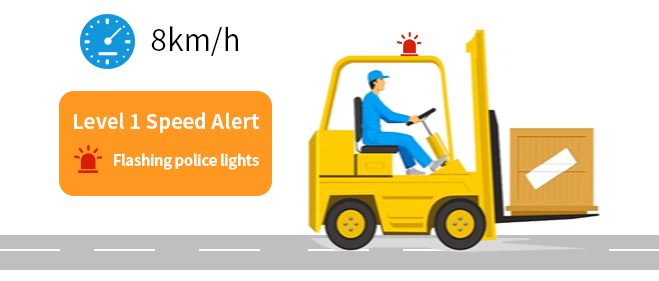

The first-level warning lights of forklifts and tractors flash when they are about to exceed the speed limit.

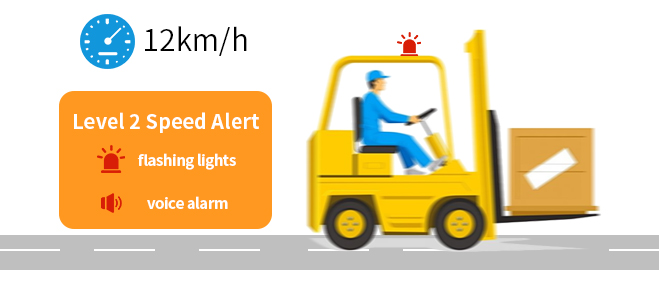

Second level speeding voice alarm Please pay attention to speeding.
Three-level mandatory speed limit, automatic deceleration for overspeed, distinguish between electronic throttle and mechanical throttle, and mandatory speed limit by controlling the throttle.

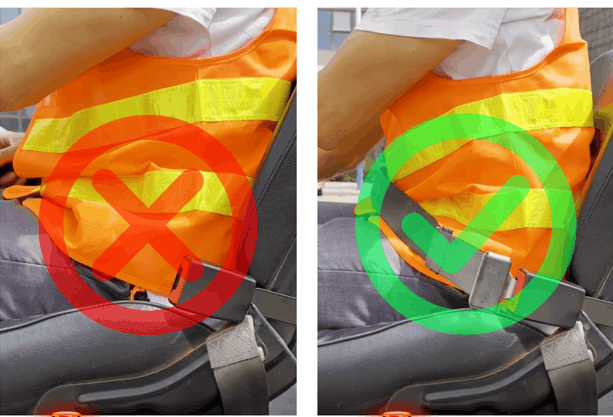

The system detects whether the driver has fastened the seat belt before and during forklift operation.
A seat belt warning system provides continuous voice prompts to remind the driver to fasten the seat belt and operate the forklift safely.
After the authentication authority is unlocked, voice prompts will be broadcast continuously to remind the driver:
If the driver does not wear a seat belt, a continuous voice alarm will sound to remind the driver to fasten the seat belt.
A controller can be added so that if the seat belt is not fastened, the forklift cannot be started.

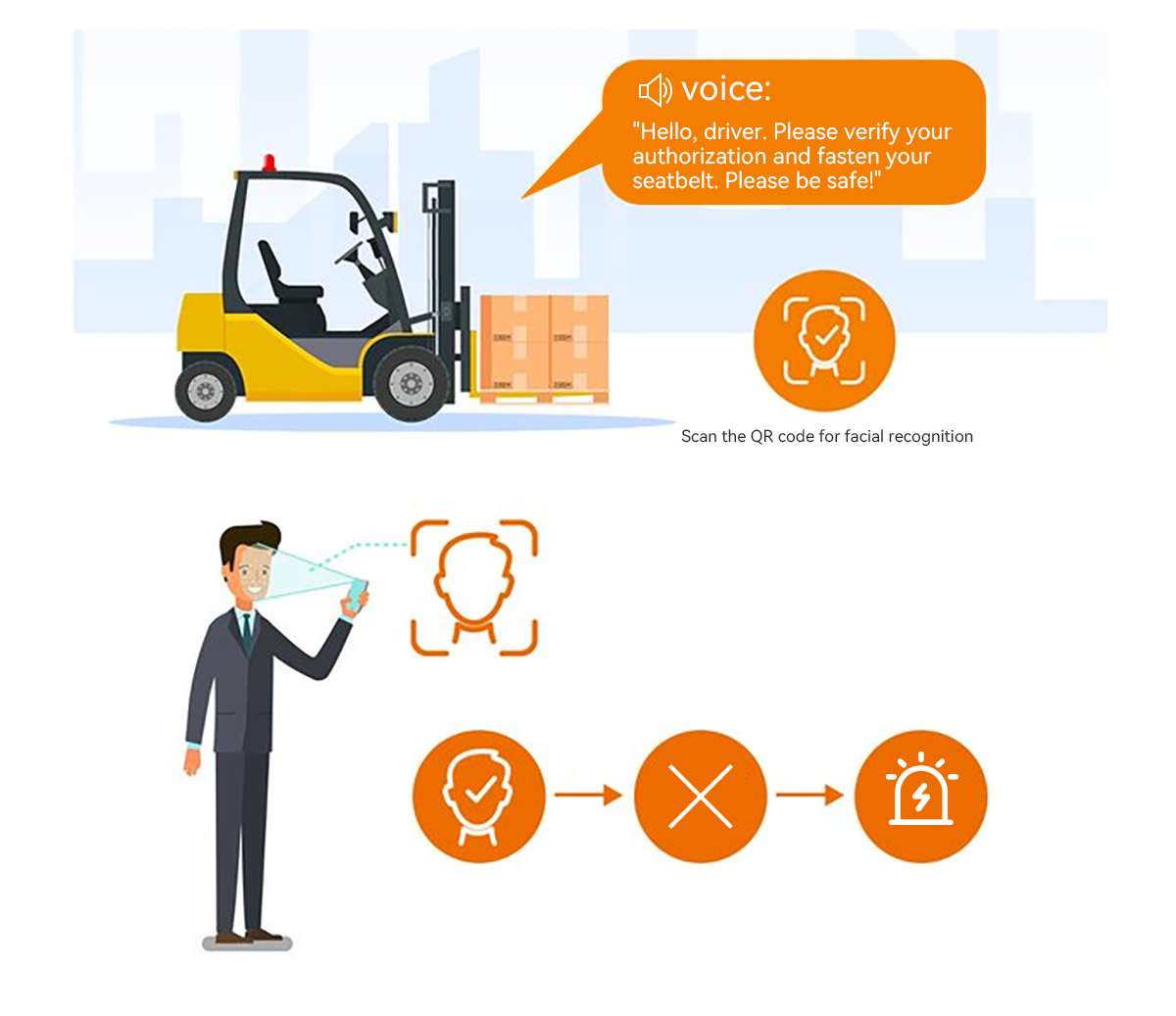

Driver authority authentication: Drivers obtain vehicle use authority through facial recognition information authentication. One vehicle can authenticate multiple user information to solve the problem of confusion in personnel use.）
